Discussion Starter #1
Was waiting to start this thread until the site sponsorship took effect, so it's been a little while. I plan to use this space as a way to communicate not only the direction I personally think the bike should take, but also a way to test the waters on future product development. So without further ado, some catch up over the past two weeks. Some of this has already been shared on the site, though.

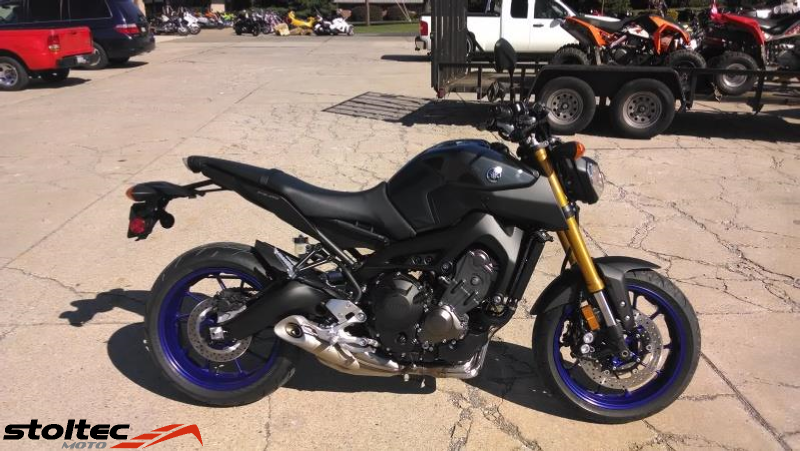

5 miles on the clock, freshly uncrated and test ridden post-PDI:


There are some definite good elements to the bike's design, and others, that are less so. I wasn't sure how I'd like the bike in person, but I think it's fair to say the overall effect is good. Some of the Triumph owners have reported the overall build quality is 'cheap'. I think a lot of that banter results from direct Japanese competition. That said, there are some obvious areas of cost cutting. For starters, the LH switchgear and shift lever look a bit unfinished or flat out cheap. Same thing with the horn. But the rest, IMO, looks pretty well sorted.

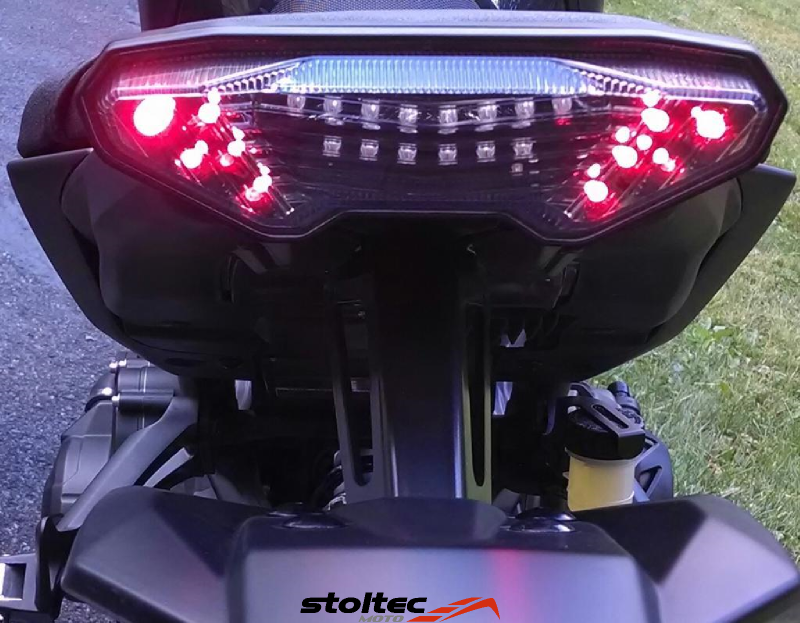

One of my favorite styling elements (flame if you want) is the tail light. Yes, it floats and kinda looks like an afterthought. However, I personally dig the look. The tail light pattern is also a nice touch:


No need to rehash the ride review here, but I'll leave it with this...the 847 cc engine is a real gem. Triumph better be paying attention!


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #2 (Edited)
After a full week of short rides here and there, trying to break it in, figured it was time for the dyno. Not only did I want to see how the power output was, but was also curious about the three drive modes and how the power was affected.



Strapped down, ready for the first run on the Dyno Jet. Unfortunately, we didn't have the time to pick up the RPM, so the runs logged road speed and A/F.


All in all, the findings were in line with what a 115 hp bike should put down to the wheel. Like all good triples, the power curve was nearly perfectly linear, though it does favor the midrange.



As you can see, the STD and A maps are identical in power output. B mode is down ~10-11 hp over ~6,000 RPM. This reflects what you feel in the saddle. Also impressive is the A/F ratio. The peak and dip down low results from rolling in hard off idle and is normal for the dyno. But, importantly, it stays nice a flat throughout and enriches a bit as the revs build. Yet again, this reflects what you feel when you twist the go stick. Nice smooth power, with no inherent lean spots. Well done Yamaha!

The dyno will be revisited once a few more miles are on the bike to look at gear by gear comparisons...


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #5


First real order of business is to start disassembling the bike before any changes are made. With the large number of changes planned, there is no sense in throwing things on just yet when the very basis of the bike is going to change.

Missing something?


Oh yeah!


The good news is that the shock comes off in a few minutes without rotating the subframe. The tank didn't even need to be removed, though it looks like reassembly will be much easier with the tank off.

So what you see is what you get with this shock (not much). Ramped preload collar and rebound adjustment (made through frame access). This shock is atypical in the sense that most shocks have the preload adjustment on the top of the shock. This, of course, was done for the sake of packaging on Yamaha's behalf. No worry, though. Kawasaki used a similar approach on a few of their shocks, so Penske already has access to the bottom preload collar setup.

The plan moving forward will be to develop all three of Penske's shocks for this bike:

  • 8975 - Low speed rebound, low speed compression, and spring preload adjustments. No reservoir - but keep in mind this is NOT an emulsion shock like of the competitors!
  • 8983 - 'Double Clicker'. Same functionality as the 8975, but adds a reservoir (remote or piggyback depending on what we can fit) and ride height adjustment.
  • 8987 - 'Triple Clicker'. Same as 8983, but adds high speed compression adjustment. Penske makes fancier shocks for the race guys, but this is top of the food chain for street and most racers.
I hope to have a dry shock in hand soon, but we're waiting on Penske now. With the final dirt track race of the season this weekend and the Orlando show this week, resources are thin. Still, the sooner the better. Anxiously awaiting the dry shock to check fit/interferences and determine the shock linkage rate.


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #7
Good question, Bob.

An emulsion shock is your standard style low-cost shock. These are found on most stock non-race bikes and some budget aftermarket options. Basically, they contain oil and pressurized nitrogen (used to prevent oil cavitation). However, the nitrogen and the oil are in direct contact (like a standard fork, which uses non-pressurized air). Under very low shaft velocities, this works out ok. However, once the shock starts working hard with higher shaft velocities, the oil and nitrogen mix; 'foam' results, along with inconsistent damping.

A good quality aftermarket shock (name your preference here) separates the oil and nitrogen with a barrier. So, you get the benefit of an anti-cavitation mechanism, but without the foaming. You'll get consistent damping across a range of terrain and shaft speeds.


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #8 (Edited)
While the shock is off and the bike is sidelined, it was a good time to send the ECU off to Flash Tune. These guys are experts when it comes to Yamaha ECU's, so there shouldn't be any issues hacking into it. This will give us, and customers, a nice way to make adjustments directly to the ECU without the need for a piggyback controller. Tuning YCCT parameters, speedo adjustments to compensate for gearing changes, mode modification, and of course fuel/spark changes will all be within reach. Looking forward to seeing what's inside!

But first, gotta get to the ECU, which is located on top of the airbox, under the fuel tank. Someone PM'd with a few questions on doing this, so here are some photos for those unsure how it all comes apart. Pretty straight-forward, but it's highly recommended to run the bike as low on fuel as possible to lighten the tank. Don't run it dry, though...Stoltec's towing fees are through the roof!

1. Remove both side scoops. These hide a tank mount on each side. Remove one screw and two pop rivets per side. To remove these pop rivets, depress the center button and then evenly pry around the outside ring/base. New rivets free of dirt should easily pop right out. Here is a view looking down at the insides of the scoops (tank removed). Note the frame bosses where the tank mount.



And here is the mount on the tank (one on each side). No need to remove the upper two bolts, just remove the bottom.


2. Remove the plastic trim panel at the front of the tank. The rubber trim peels off and the panel is secured with four pop rivets - same as on scoops. Here are the parts off the tank:


3. Remove the two side bolts followed by the two bolts at the back of the tank after the seat is removed.
4. Time to disconnect the harness, fuel line, and vents from under the tank. This is easily done if you lift the tank up and slide back a couple inches. You can rest the tank directly on the rear mount casting (silver). From the side, you can see the connections you'll need to disconnect.



As always, it's recommended to remove the fuel line with no residual line pressure. Let it bleed down if the bike was running or the pump was primed. The longer you let it sit, the better. Still have a rag handy for the little bit of fuel remaining in the hose. That's pretty much it.

Now that the tank is off, you can see the front shock mount alluded to in a previous post. Will definitely be easiest to reinstall the shock with the tank removed!


So with the tank off, this is what we were after:


Hopefully have it back within the next two weeks...

While under the tank, figured it was a good time to have look into the airbox and see how fancy Yamaha got. Pretty impressive!


Pretty amazed at how many leaves this thing sucked up in only 350 miles...

Here's a better look at those staggered velocity stacks we've all been reading about. Pretty neat.


A better look at the other half of the airbox. The down tube feeds from directly under the tank with no external ducting.


Looking at the underside of the lid, you can see two resonators...one on each side of the filter. The clean side is fed by a breather, but the dirty side is not. At this time, no one outside of Yamaha likely knows if the Helmholtz chamber is there for sound suppression or resonance tuning for power. If/when the laundry list of projects on this bike dies down, it would be interesting to see if removing the clean chamber has a noticeable effect on either. Gains are likely to be minimal (if any!), but curiosity has killed this cat before...


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #12
Hey Nick- Very excited to see that you are working on an FZ-09. Do you have any plans to put on an aftermarket exhaust? How is the stock exhaust note?

Rob
Rob! Are you planning to pick up an FZ, as well?

The stock exhaust is very quiet at idle, but you can hear some sound while riding. It has a metallic sound to it that I personally enjoy. That said, an exhaust would be nice to save weight, but it's low on the priority list.


·
Registered
Joined
·
8 Posts
Yes, considering one for the spring. We will see how the introduction of the new MotoPump goes and if I can move a few project bikes along.

What is your timeline for the project bike? What are the plans for greater adjustability of the fork?

Thanks-

Rob


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #15
Really dig the blue logo on the side. Looking forward to seeing what you do to this bad boy.
I'm pleased with the match, as well.

Yes, considering one for the spring. We will see how the introduction of the new MotoPump goes and if I can move a few project bikes along.

What is your timeline for the project bike? What are the plans for greater adjustability of the fork?

Thanks-

Rob
Awesome, I think you'll really enjoy the bike! Timeline - nonstop. I expect to have the bulk of the projects done by spring, though (including adjustable forks).


·
Registered
Joined
·
5 Posts
Looking good nick, I am very interested in what you have going on with the rear shock. I plan on doing 2 up about 85% of the time, I am 170# and she is 95#. I havnt gotten a chance to ride it yet, so a little unsure if the bike can handle it or not. I have read that its not comfortable for the passenger, but I am willing to bet is a huge improvment over my buell. Only time will tell.

appreiciate your good work sir.

good luck

peace

Jb


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #18
Looking good nick, I am very interested in what you have going on with the rear shock. I plan on doing 2 up about 85% of the time, I am 170# and she is 95#. I havnt gotten a chance to ride it yet, so a little unsure if the bike can handle it or not. I have read that its not comfortable for the passenger, but I am willing to bet is a huge improvment over my buell. Only time will tell.

appreiciate your good work sir.

good luck

peace

Jb
You're pretty borderline (alone without pillion) for the stock spring rate and damping. In this regard, your Buell would be better as Erik and elves never skimped on suspension. Ever.

After reading verns post about the torque on the engine, how would you compare it to the 1203's from the buells?


Jb
Well, that's a tricky question. It clearly makes less torque. However, it has six gears and a broader spread of torque. The end result, IMO, is that the FZ-09 feels as grunty as the 1203. I don't have one here to compare side by side anymore, but I'd say the arm stretching is similar...except the FZ keeps on going and going and going. Also, the 'feel' is inherently different going from a 45 degree twin to a triple...but you expect that.


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #19
...and time for more project progress. Today was a busy day!

Forks have been disassembled on the bench, but did some cataloging today and figured I'd share some photos so everyone can see what Yamaha did to us. As we're all aware, the FZ-09 is only adjustable for rebound damping and spring preload. Effectively, there is a one 'real' or 'full' cartridge in the adjustable leg (sans compression adjuster in the fork leg, though) and one 'dead cartridge' in the other leg. Basically, the dead leg contains a spring, preload adjuster mechanism, oil, and a dummy cartridge (w/ top out spring) to keep the fork from coming apart when the front wheel comes off the ground.

Adjustable cartridge on bottom, dead guy on top. Note the extra holes in the top leg (top and bottom). These holes render this cartridge useless from this point onward...


Fork cap differences, adjustable on left:


And a few views of the stock pistons and shims:



And for comparison's sake, what's in (or not in) the other leg:


Initial baseline on the fork springs show a rate in the 0.75-0.77 kg/mm range. I'll have the exact number nailed down soon, but the bottom line is that this confirms what we all knew - the springs are soft. My first crack will likely be 0.90 kg/mm for my weight.

Oh, and I realized I forgot to post another piece of 'history' from another post...the curb weight of the bike. Yamaha claimed 414 lbs 'ready to ride'; this bike measured 420.5 lbs wet (212 lb front / 208.5 rear or 51:49). So Yamaha's ratio was spot on...even if a little low.


·
Vendor
Joined
·
3,290 Posts
Discussion Starter #20
And on the other end, we have progress at the rear! Here are a few more development sneak peeks...



The guy on the left is really just for comparison's sake. As you can see from the photo, the threaded body is on the end that would be shrouded by the tank and frame. This would make preload changes all but impossible. Still, trying to get a feel for what combination of parts will get something that at least fits on the bike. This is only the start of the development process, but naturally, it's a critical first step.

Given the backwards configuration of the FZ-09 shock, we're going to be looking at something like this:


The red adjuster is rebound and the silver jam nut is what you loosen to adjust the ride height; the spherical bearing mount in this photo is turned out quite a bit. The clevis mount shown under the shock is what we'll need to use for the FZ's lower mount. All of this is standard fare for a Penske shock. However, the preload adjustment (the black threaded body and gold collar) is on the bottom here (compare with the first picture, above). This has been done on a few other oddball shocks in the past...
