Discussion Starter #1 (Edited)
I thought I would share what I have been up on my MT09

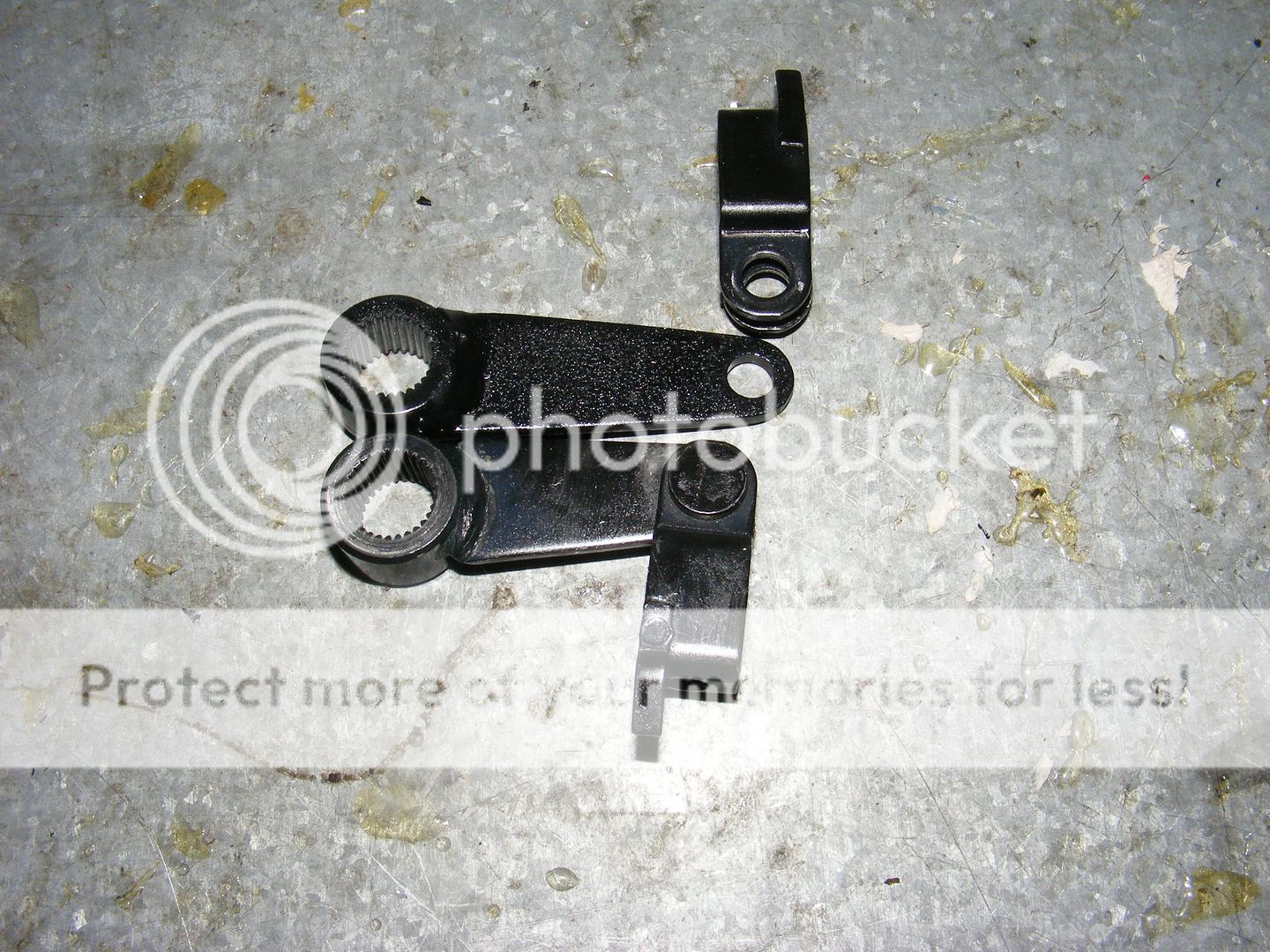

The clutch has been bugging me so I bought a second clutch pull lever & cut the plate off & welded on a longer plate, the new plate is 8mm longer from centre to centre = a much lighter clutch, I had to bend the cable bracket so the inner cable pulls straight, I will put a nice titanium bolt & nylock nut on tomorrow.

I won't be building any more this is a once off mod for my bike. COPY & paste links if you cant see the photo's

1. MT09 40mm
2. Yamaha Bolt XVS950 Actuator +5mm or +12.5%
3. Yamaha MT-03 +10mm or +25%






http://i68.tinypic.com/2vmwqrm.jpg
http://i65.tinypic.com/2ccrp92.jpg

http://i67.tinypic.com/flzloj.jpg
http://i67.tinypic.com/3013p5t.jpg

I rode with this mod for a while & progressed to the next stage in contacting Magura in Germany but they don't list or build a kit for the 09's, I have been working with them & have a final version fitted to my 2014 MT09 which will hopefully come out in the future line with Magura. Otherwise the listed parts is the kit that I have fitted to my bike.

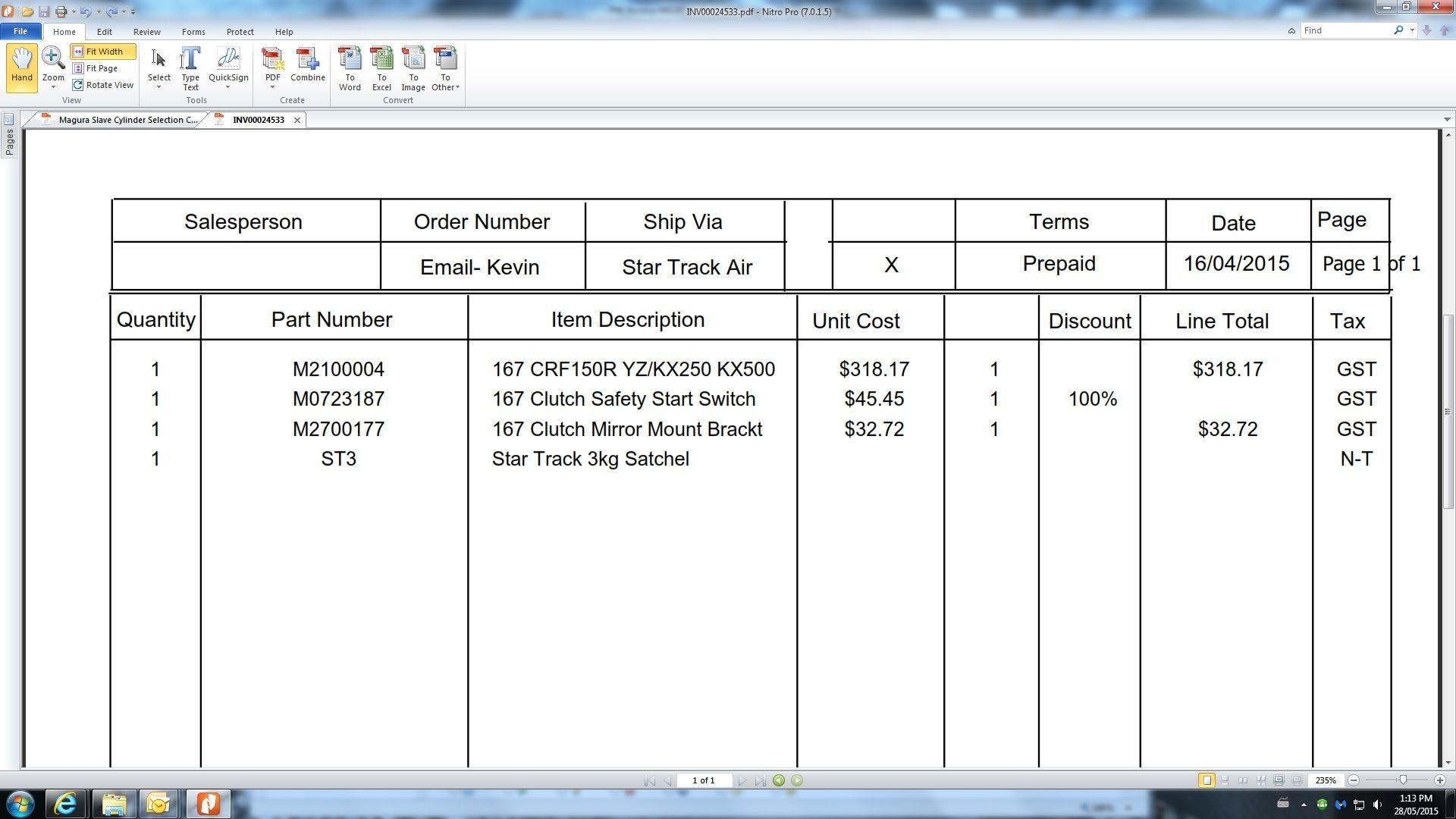

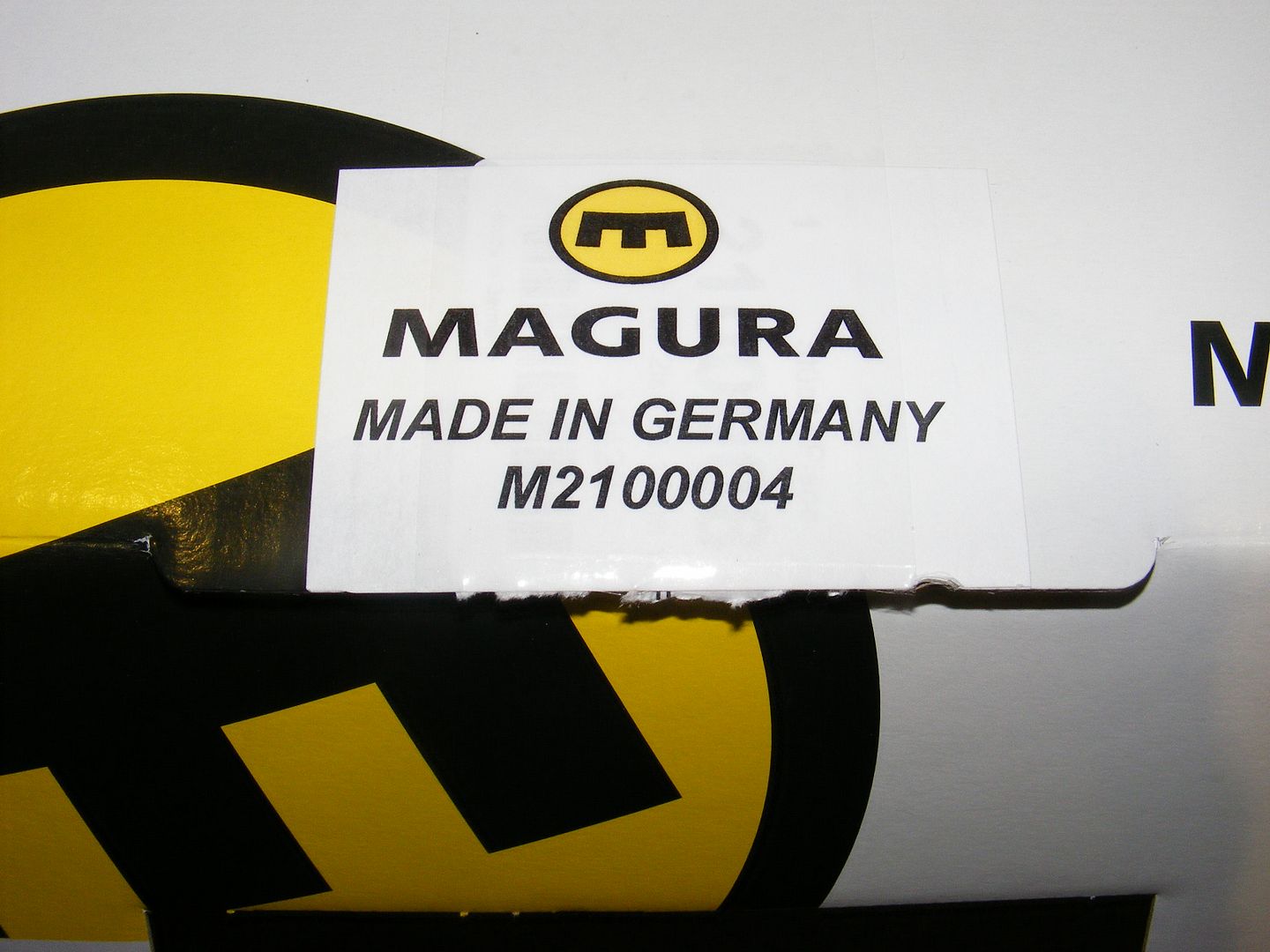

I used this kit that has a 167 gen2, 9.5mm master cylinder with a 30% lighter clutch pull compared to the standard cable clutch. UPDATE 25.5.16 If I did the mod again I would be using a master cylinder with a 10.5mm piston 2700185 with 2mm longer stroke. http://100moto.com.au/kx500-1988-to-2004-magura-hydraulic-clutch-kit-167-model-2100004/

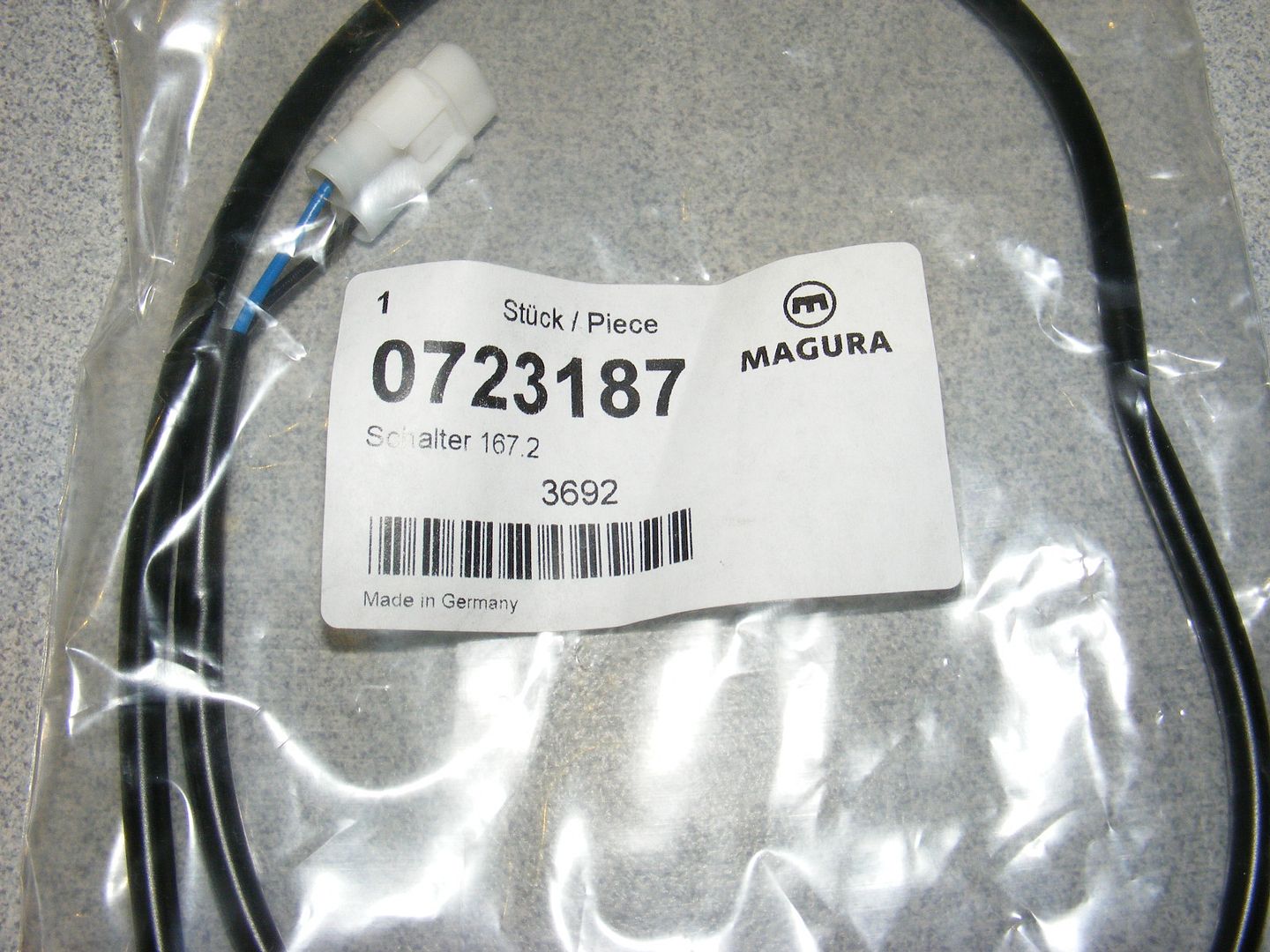

The Clutch switch needs to be wired into the OEM loom. http://100moto.com.au/magura-master-cylinder-clutch-safety-start-switch-167-model/

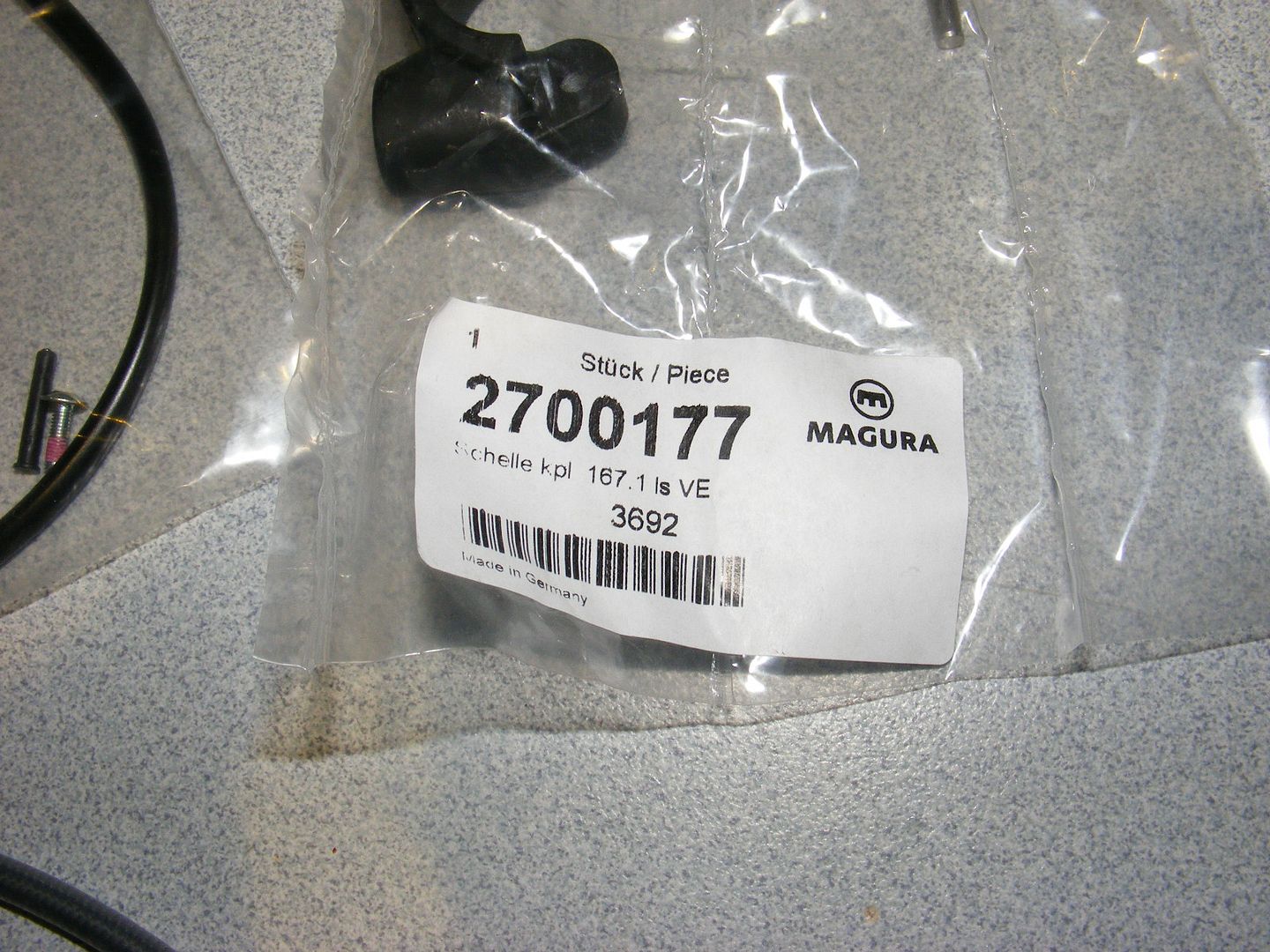

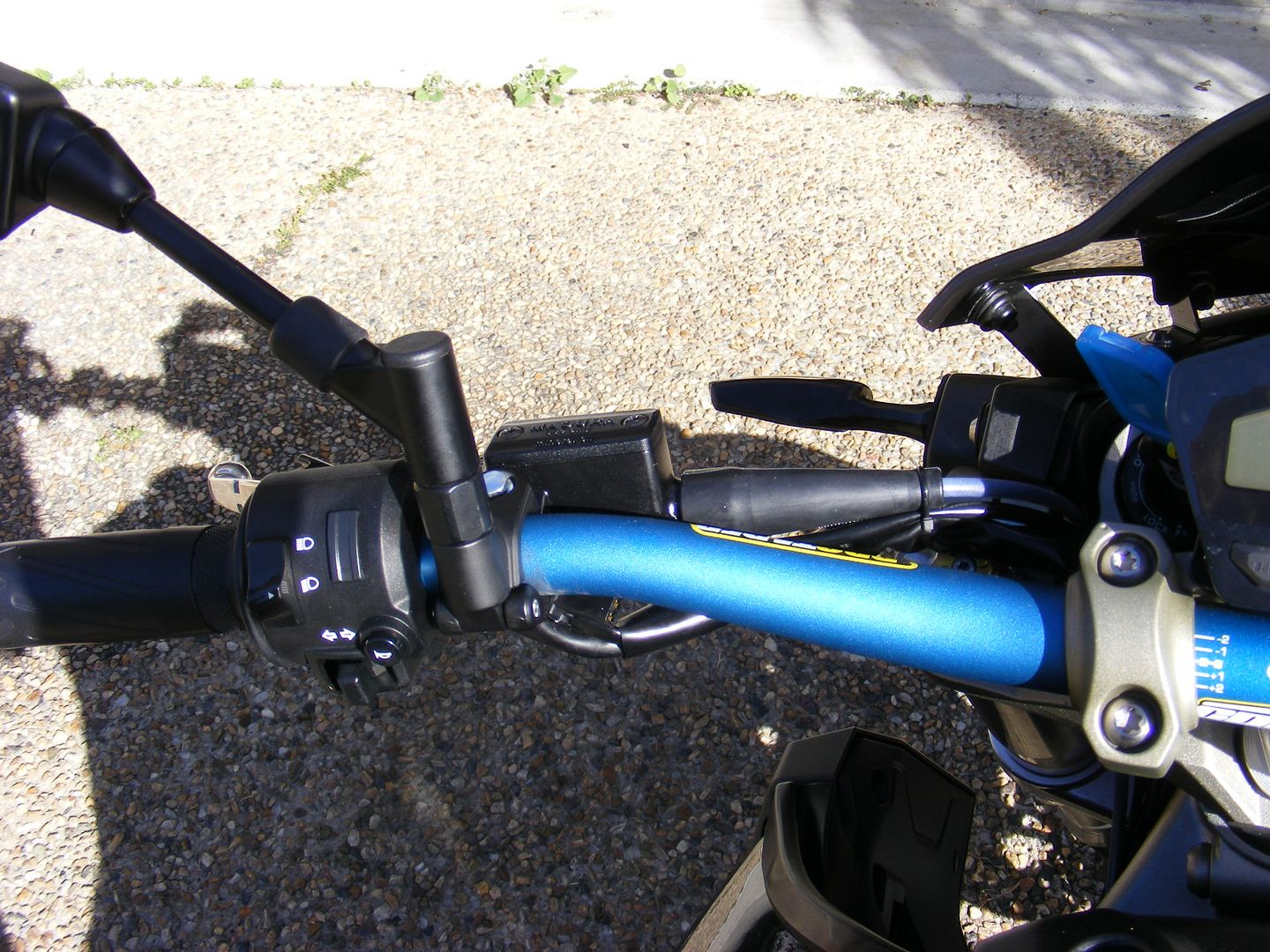

Bar mount, correct thread & mirror size mount for OEM mirror, just ask for a black one, if you have bar end mirrors you do not need this mount. http://100moto.com.au/magura-master-cylinder-bracket-clamp-167-model-with-mirror-mount/

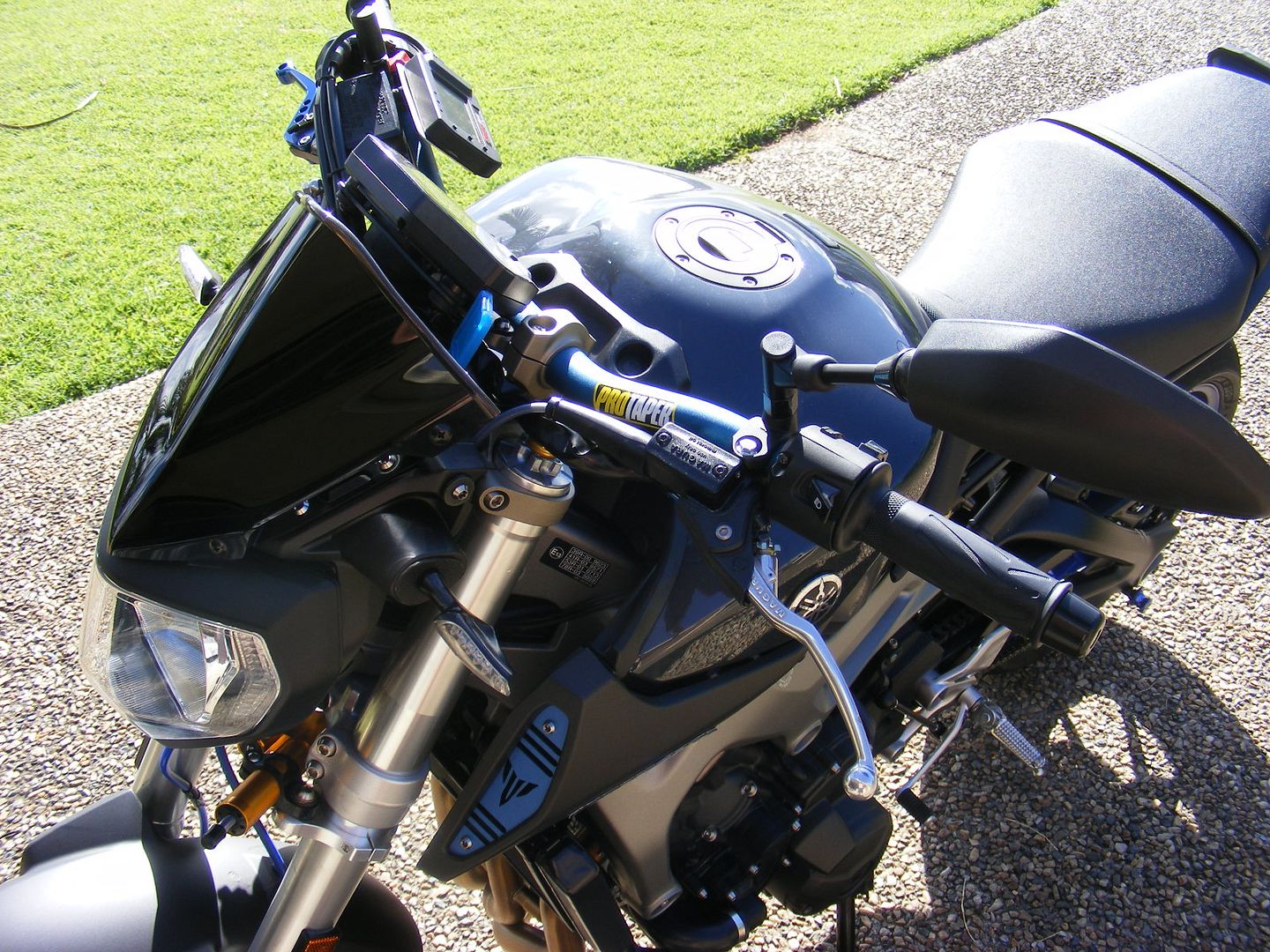

You need to remove the tank & air box to fit the kit, it threads through the frame no problems & follows the same cable path as the OEM cable, the kit is plug & play I only had to wiring in the clutch switch.

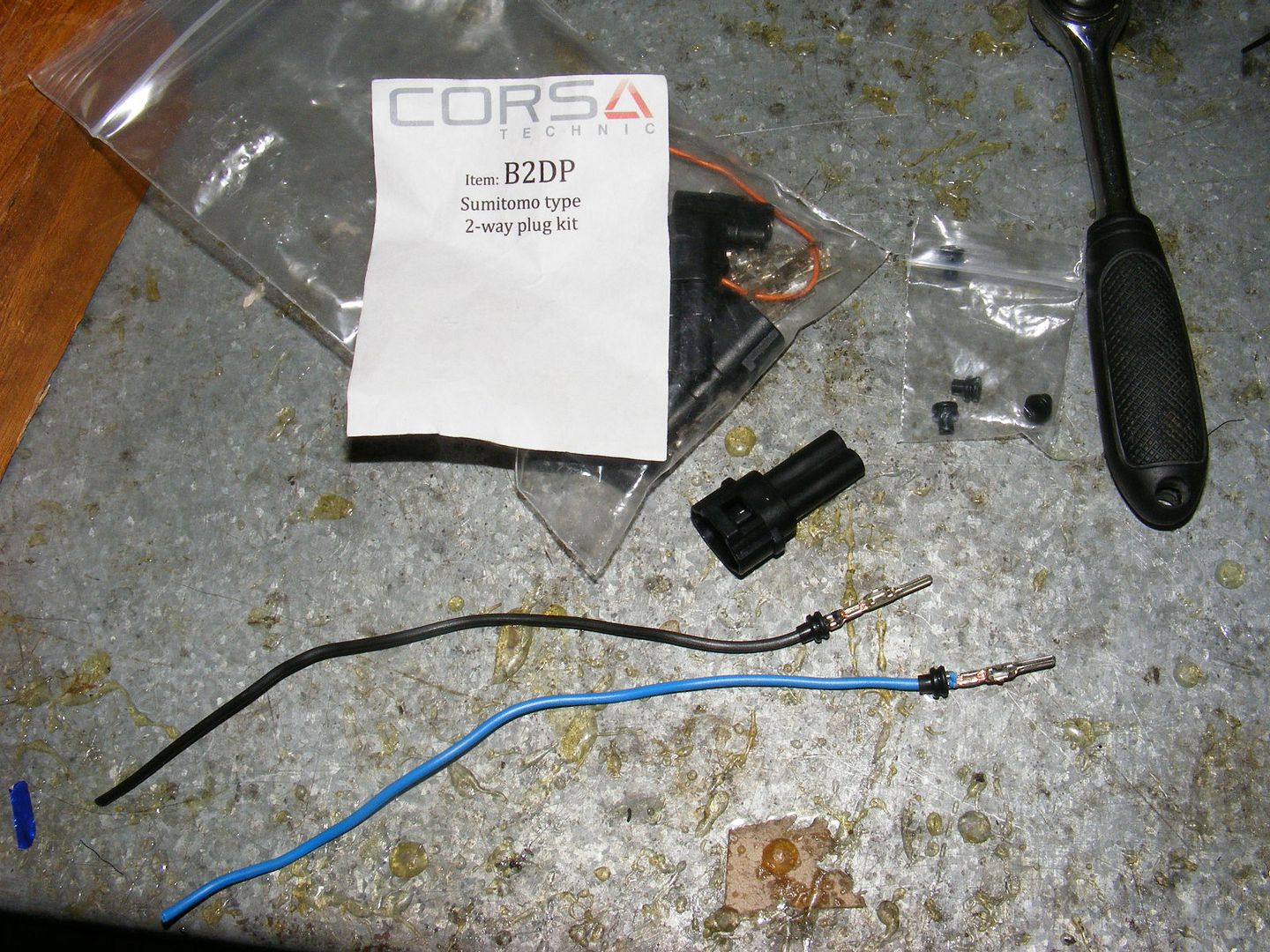

I wired in the clutch switch just behind the head light as I did not want to modify the loom by the bars, I matched the connector for the new clutch switch & soldered in the new connector loom that I made.









I will need to sort the brake lever out now to matching colours



If you contact Paul he will do you a better deal on all the parts.

Paul Hoey

Magura, Liquid Intelligence,
ACD Racing Parts, Mishimoto, SCAR,
Blitz Vision, Storm, WeaponMX, Factory,
TamerMX, Frank Industries, Racer00, Goat

P: (03) 9753 6955
F: (03) 9753 6966
E: [email protected]
Click: www.100moto.com.au


·
Registered
Joined
·
604 Posts
Discussion Starter #2 (Edited)
At the beginning of this year I was the first to work out how to fit a cheap damper to the 09, since then a few of the guys have improved on my version which is great to see.







I am not saying everyone must do this mod all I am showing is what I have done to my bike, a steering damper mod for under Oz $90.00.

I bought one of these off EBay 52MM STEERING DAMPER FORK CLAMP Motorcycle, 52mm Steering Damper Fork Clamp Motorcycle | eBay
An adjustable steering dampener, CNC Steering Damper Stabilizer For | eBay

Then made up a bracket as shown below & bolted it all up.






6mm hole frame side & 8mm hole at the damper.







Some more photo's







·
Registered
Joined
·
604 Posts
Discussion Starter #3 (Edited)
I did some testing on the air box & filters & these were my findings.

I am not indorsing this mod all I am doing is sharing info from back to back testing, Ok we have some results from installing a DNA filter & cutting the snorkel out with before & after Dyno runs using the same Dyno, same bike, same day, with no other modification besides the filter & snorkel removal, they are only small gains but they are a result that would show more gains with a freer flowing pipe which I will measure when I get my Akra Carbon in a few weeks time. I took the best runs from each sets of tests.

Before & After HP V RPM, Blue run completely STD bike, RED run DNA filter + snorkel removal



Before & after Torque V RPM



A Before & after A/F ratio we can see the DNA & snorkel mod runs the bike a little leaner.



The interesting one is when the bike is measuring HP over time under the same Dyno brake load, the DNA & snorkel mod produces a nice gain in HP when measured over time, this test simulates acceleration over a known calculated time period.



What we did, we removed the air box lid, cut the snorkel off, drilled out the baffle plate & removed it, then cut the intake hole bigger on the lid.





The larger hole is still protected from water entry.



Final thoughts, the MT/FZ 09 has a well designed air intake system & there was little gains from the mod, at least someone has posted the results, as mentioned the mod will show further gains once we bolt on a free flow pipe, the intake noise is low with the mod but comes with a nice growl on hard accelerations, there was no losses anywhere with this mod so not a bad result in the end, watch this space more Dyno results to come.

I will explore pod filters next or a full foam filter air box setup simular to what I run on my 1290, I will look at doing some 3D printed straight stacks to see if there are any gains there.


·
Registered
Joined
·
604 Posts
Discussion Starter #4
I have done a few other mods to my front end, I bought a fork cartridge kit ANDREANI GROUP YAMAHA MT-09 MT09 MT 09 105/Y07 Cartridge Cartouche Andreani Group Yamaha MT 09 MT09 MT 09 105 Y07 | eBay

If you contact the guy he will do you a better deal than off EBay. I asked for 1.0kg/mm springs at the time of order, to cut a long story short the heaviest spring they offer for this set is 0.85kg/mm, so I stripped the new cartridges & fitted my Sonic 0.95kg/mm but need to do a few adjustments to make the Sonic spring fit.

The Sonic springs are 30mm longer so I got my mate Kev2 to machine the identical spring spaces 30mm shorter, I also removed 2 of the fork spring centralizing spacers machine new ones the same length as the two removed but with a bigger diameter so it centralizers the new Sonic spring. All went together like a glove, a nice improvement to my ride.











I also made my own fork spring compressor, which only cost a few $






I did end up using a ratchet strap.



·
Registered
Joined
·
604 Posts
Discussion Starter #5 (Edited)
This one is a big thank you to Marty for all his time & research on a mod that works so well.

A 2009 ZX10R rear shock installed, I had to drill out one end of the shock from 10mm to 12mm & set my sag to 40mm.






·
Registered
Joined
·
604 Posts
Discussion Starter #6 (Edited)
I have just about replaced every bolt on my 09 with Titanium except main engine casing bolts, the lower frame bolts were seriously rusted for a 4 month old bike, I am on bike 48 & this one has the worst bolts I have ever seen for it's age, they look fine until you pull them out.



·
Registered
Joined
·
604 Posts
Discussion Starter #7 (Edited)

·
Registered
Joined
·
34 Posts
I have seen and ridden Kev's bike with the Magura haudrulic clutch conversion today while he fitted his O2 controller mod to my bike.

It is a very professional installation and could have been part of the original bike it is that clean an install.

Kev's O2 controller mod is also a quality part and transforms the EFI closed circuit fueling jerkiness into a seamless transition from closed to part open throttle.


·
Registered
Joined
·
604 Posts
Discussion Starter #9
Ok the Akra is only one day old & needs to be modified, I want to build a Auto Tune PCV map before I head to the Dyno for custom mapping in two weeks time & you ask why because I like to play, I had to weld in a 2nd O2 sensor bung so I can do the job correctly.

Thanks to Kev2 for your help today.









We also have real problems here in Australia Queensland if you get cause with a none compliant bike when you have removed the Kat, big fines & lost points, so I have worked out a solution today for that using a Akra Kat I had lying around, I will have the Kat removed for any mapping. The Kat was not a correct fit & need to have a thin stainless steel sleave machined up to hold it central, the length was perfect & the cat is bigger than the inlet into the Kat chamber, it is a 200 core cat which will not affect the performance by much, there is no sound difference with or without the Kat.













·
Registered
Joined
·
604 Posts
Discussion Starter #10 (Edited)
Custom Akra Carbon PCV mapped on the Dyno this past Saturday, the ride/throttle response is much smoother, all PCV fuel cells remapped to 13.2:1 in the open loop, I still run my O2 controller that controls the closed loop area to 13.6:1. This custom map can be found at this link: http://www.fz09.org/forum/14-fz-09-performance-suspension/6883-custom-built-dyno-pcv-maps.html

The Akra carbon shows between +8 to +10 rear wheel HP gains between the STD & Akra pipes.

This is what the difference are between 4th gear in BLUE to 6th gear in RED



This is the difference in Torque between the old Yamaha OEM flash with custom PCV map with STD exhaust Verse the latest Yamaha OEM flash with custom PCV map with the Akra Carbon measured on the same Dyno in 4th gear.



·
Registered
Joined
·
604 Posts
Discussion Starter #11 (Edited)

·
Registered
Joined
·
604 Posts
Discussion Starter #12 (Edited)
Shoria battery, I bought it in 2011 fitted it to my 990 SMR, then fitted it to my 2012 SMT, then ran it in my 1290 for a year & it is now fitted in my 09 & still going strong 4 years later.

Weight savings






·
Registered
Joined
·
34 Posts
Kev,

They sure do, and all done to a level of quality that only a fastidious bike mechanic can. :)


·
Registered
Joined
·
604 Posts
Discussion Starter #14 (Edited)
The speedo over reads a little so I wired in a SpeedoDRD to correct it to my GPS speed which was out by approx 6% over reading.



·
Registered
Joined
·
604 Posts
Discussion Starter #15 (Edited)
So my mods stand at

Full Carbon Akra system, custom flash + custom PCV map
Modified snorkel with DNA filter
AIS blocked off
POD-300 with Dyno jet Auto Tune AT-300, second sensor welded into Akra
Shoria battery
Protaper fat bars
Braided front & rear brake lines, with EBC HH sintered pads
95% of every nut, bolt, spindle, linkage bolts, engine mounts replaced with titanium
0.95 springs Andreani Cartridges , 7.5w oil @ 120mm, ZX10r rear shock
Yamaha Screen
Speedo corrected to read true speed.
Central relocating dash cluster plate
Lastly my O2 controller


·
Registered
Joined
·
604 Posts
Discussion Starter #16
Kev,

They sure do, and all done to a level of quality that only a fastidious bike mechanic can. :)
Ha ha I am a fussy old bugger & modifying is my addiction.


·
Registered
Joined
·
604 Posts
Discussion Starter #18
Now you just need to learn how to ride Kev. LOL nice work bro, i see i need to do some catching up!!
Yip the mods are building & you are behind, behind in mods & on the road.:la:
